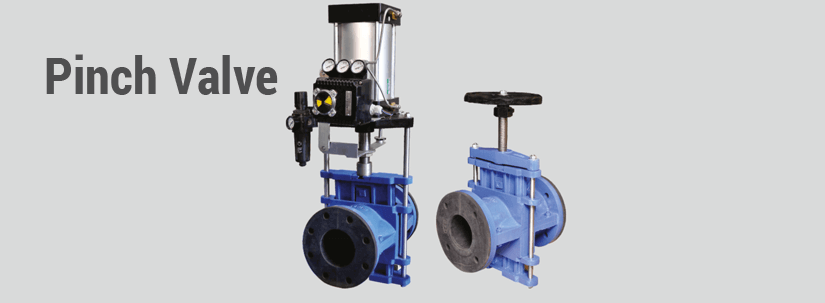

Pinch Valve
Pinch valve is a Seat-less & Glandless valve.

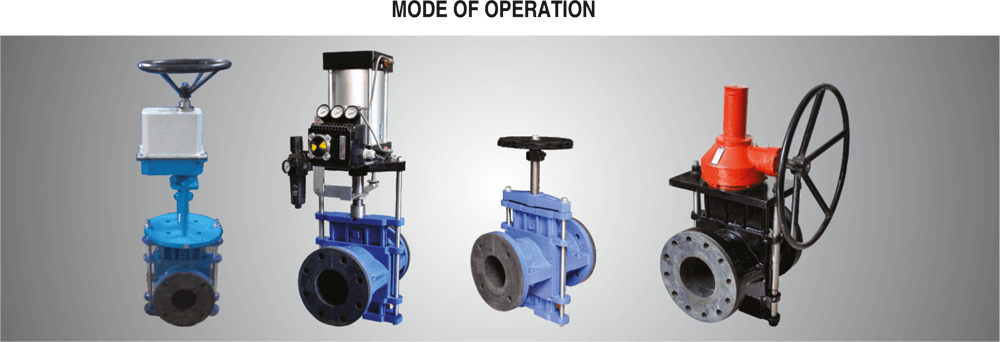

Pinch valve is a modified version of laboratory pinchcock. A rubber sleeve is protected under a body made from cast iron, aluminum casting. The service material / fluid passing through does not come in contact with either body covering or any other metal parts of the valve except the rubber sleeve / muff and hence the body and other metal parts are almost permanently not subjected to the corrosive action of the fluid. The flow through the valve is straight and full as that of a pipeline, when the valve is fully open. Further, the collar of the sleeve eliminates use of any gasket. The valve having simple rising spindle type operation makes the valve just simple as other wheel operated valve. The in-between stoppage will allow the desired throttling and Pinch valve thus offers positive control over flowing media
FEATURES
Seat - less & glandless valves
Field replaceable elastomer sleeve / muff
Rubber sleeve / muff has four reinforced lugs
Flanged ends & drilled to DN, ANSI, BS - 10, IS, etc.
This valve incorporates all design modification based on our experience & is of sturdy construction & good quality finishing to handle abrasive and corrosive.
RUBBER SLEEVE (MUFF)
Available in Reinforced Natural, Neoprene, Silicon, SBR, Hypalon, Butyl, EPDM etc.
FLANGE DRILLING
As per DIN, ANSI, BS-10 etc.
Application
Pinch valve finds its best application in handling corrosive slurry, abrasive media, liquid with solid suspensions and many others, which are difficult to handle with seat valve. Pinch valves are also best suited for Vacuum service
Range
The flange of the pinch valve can be supplied in accordance to BS, DIN, ASA & IS dimensions. The range for the valve is from 15 mm TO 300 mm. Higher size range can also be developed on request.
