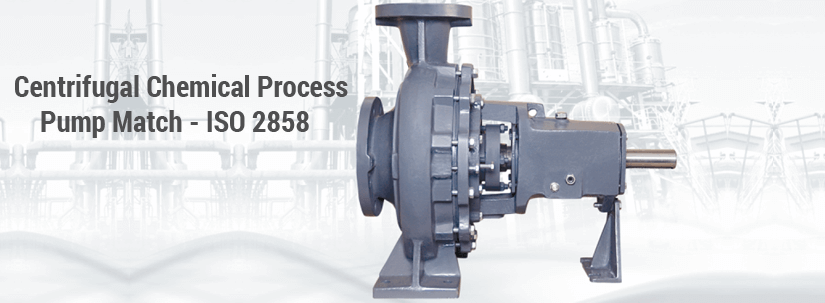

Centrifugal Chemical Process Pump Match - ISO 2858
Application :
The PCF Centrifugal pump is suitable for handling water. Condensate, oil some aggressive chemical products and other liquids mainly used in the following application:
Water Supply
Irrigation
Air conditioning
Fire fighting
Drainage
Heating
Chemical and petrochemical
sugar and alcohol industry
Boiler feed
Auxiliary circuits in refineries
Auxiliary circuit in industry (Paper, Food, Synthetic Fibers, Others.)
Design :-
Horizontal, single stage, end suction centrifugal pump dimensionally built to ISO 2858 and technical specification DIN 24256 / ISO 2858. The back pull out design allows for easy maintenance and repair as the rotating element may be removed without disturbing the pipe work. Pump has wear rings as standard and lifting eye on bearing bracket.

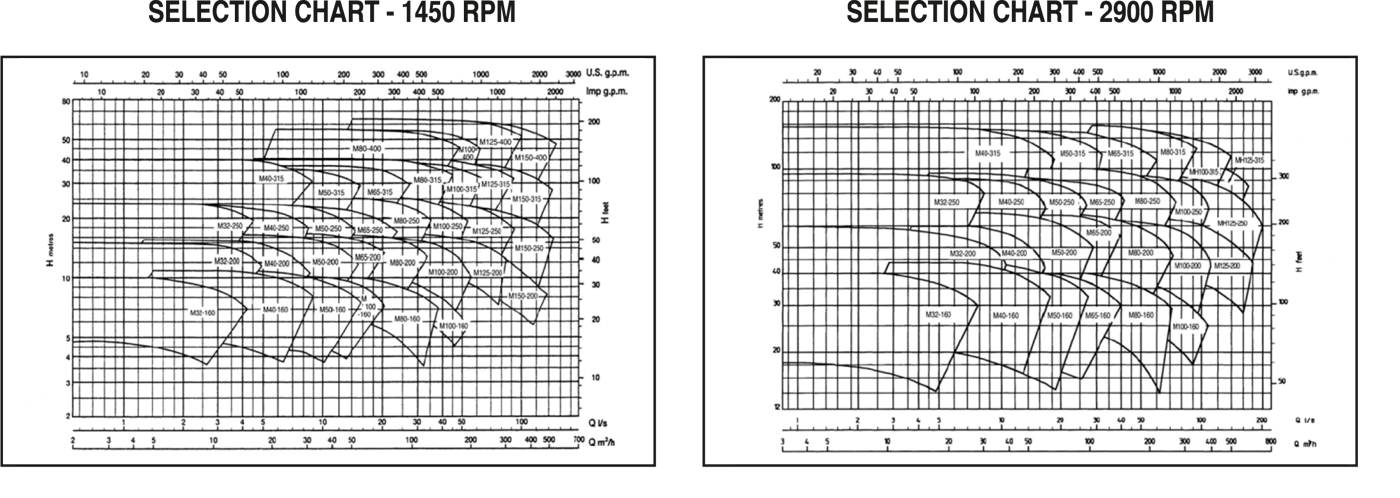

Operating Data :-
| 50 Hz | 60 Hz | ||
|---|---|---|---|
| Delivery size | 32mm to 150 mm | ||
| Flow | up to | 540 m3/hr | 630 m3/hr |
| Head | up to | 160m | |
| Head | up to | 160° C | |
| Speed | up to | 2900 rpm | 3500 rpm |
