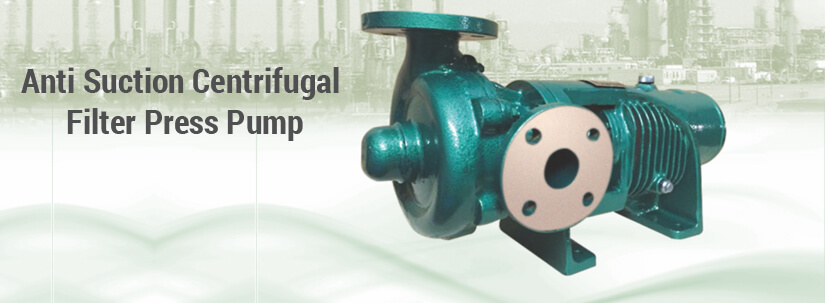

Anti Suction Centrifugal Filter Press Pump
Application :
Ideal for Filter Press applications in Dyes, Intermediates,
Scrubber and Spray Dryer Application.
Chemicals, Textiles, Ceramics etc. industries
Oil & Petrochemicals Industries
Effluent Treatment Plants
Transferring, Loading, Unloading of Chemicals, Light
Petroleum Products etc.
Features
Semi-open type impeller design to handle slumies with solids
Side Suction & Top Discharge connection
Least Leakage due to gland portion on Suction Side
Harden & Grind Shaft gives longer life
Heavy duty Oil lubricated bearing housing
Available in All CI, CI/SS, and SS-316 moc
TECHNICAL SPECIFICATION
| Model | Size | Ele. Motor HP / kw | Pump Speed RPM | Discharge Head Kg/Cm2 | Capacity in Liters / Hour |
|---|---|---|---|---|---|
| FP-0 | 25 x 25 mm | 1.0/0.75 | 2900 | 1.5 | 3000 |
| FP-1 | 25 x 25 mm | 2.0/1.5 | 2900 | 2.0 | 4500 |
| FP-2 | 40 x 40 mm | 3.0/2.2 | 2900 | 2.5 | 10000 |
| FP-3 | 50x 50 mm | 5.0/3.7 | 2900 | 3.8 | 8000 |
| FP-4 | 50 x 50 mm | 3.0/2.2 | 1450 | 1.4 | 8000 |
| FP-4B | 50 x 65 mm | 10/7.5 | 2800 | 5 | 10000 |
| FP-5- | 65 x 50 mm | 15/11 | 2800 | 7.5 | 14000 |
| FP-5B | 65 x 50mm | 5/3.7 | 1450 | 2.4 | 9000 |
